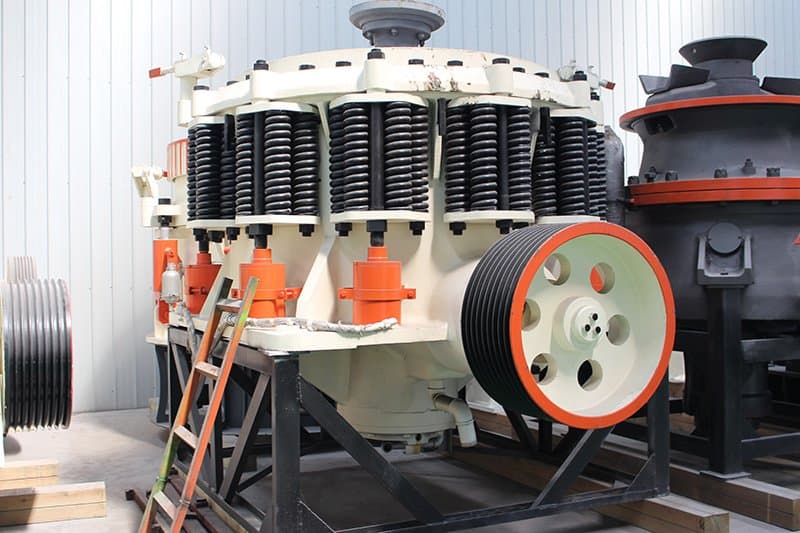

Cs Series Spring Cone crusher

Introduction of CS series spring cone crusher

CS series spring cone crusher is suitable for crushing the ore and rock above medium hardness. It has the characteristics of reliable structure, high production efficiency, convenient adjustment and economical use. Its spring safety system plays the role of overload protection, can make super-hard foreign bodies (such as iron, etc.) through the broken cavity and not damage the machine. Dry Oil or water are used to separate the stone powder from the lubricating oil to ensure the machine to work reliably. The crushing cavity type is determined by the particle size of the finished product. The standard type is used for medium crushing operations, and the medium and short head types are used for fine crushing operations.

Performance Advantages

Deep Cavity crushing, energy saving

Optimized deep cavity crushing, and no dead angle, feeding capacity and crushing efficiency greatly improved, single energy saving 15%-30% , system energy saving more than double.

Hydraulic open cavity design, convenient for maintenance

The whole machine adopts the hydraulic operating system, which is not only safe, but also convenient for later maintenance.

The size of discharging particle can be adjusted and the discharging particle type is good

The size of the discharge hole can be adjusted to control the size of the discharge particle, and the size of the discharge particle can be guaranteed by controlling the crushing force.

WEAR-RESISTANT MATERIAL UPGRADE, longer service life

The new counter-attack to wear-resistant parts material has also done an upgrade, high-strength wear-resistant hammer head safety, long life.

When the crusher is working, the motor drives the eccentric sleeve through the elastic coupling, the drive shaft and a pair of bevel gears to rotate, and the broken cone is driven by the eccentric sleeve to rotate and sway, so that the broken wall and the rolling mortar wall are sometimes near and sometimes far away, the ore is constantly crushed and impacted in the crushing chamber.

Technical parameter

Types	Moving cone diameter(mm)	Cavity	Inlet(mm)		Outlet(mm)	Spindle speed(r/min)	Power(kw)	Yield(t/h)	Appearance(mm)
Types	Moving cone diameter(mm)	Cavity	Feed(mm)	Edge opening(mm)	Outlet(mm)	Spindle speed(r/min)	Power(kw)	Yield(t/h)	Appearance(mm)
CS75	910	Feed Coarse type	83 159	102 175	9-22 13-38	580	75	45-91 59-163	2821 × 1880 × 2164
CS110	1200	Fine type	127	131	9-31	485	110	63-188	2821 × 1974 × 2651
		Medium-sized	156	156	13-38			100-200
		Coarse type	178	191	19-51			141-308
CS160	1295	Fine type	109	137	13-31	485	160	109-181	2800 × 2342 × 2668
		Medium-sized	188	210	16-38			132-253
		Coarse type	216	241	19-51			172-349
CS220	1395	Fine type	155	173	25-65	485	220	180-285	3360 × 2650 × 3050
		Medium-sized	188	198	22-50			215-330
		Coarse type	230	245	19-45			230-570
CS250	1650	Fine type	188	209	16-38	485	250	181-327	3911 × 2870 × 3771
		Medium-sized	213	241	22-51			528-417
		Coarse type	241	268	25-64			299-635
CS315	2134	Fine type	253	278	19-38	435	315	281-726	4631 × 3251 × 4732
		Medium-sized	303	334	25-51			608-998
		Coarse type	334	369	31-64			789-1270

Model	Outlet(mm)	Yield(t/h)
CS75	9-38	45-163
CS110	9-51	63-308
CS160	13-51	109-349
CS220	19-65	180-570
CS250	16-64	181-635
CS315	19-64	281-1270
