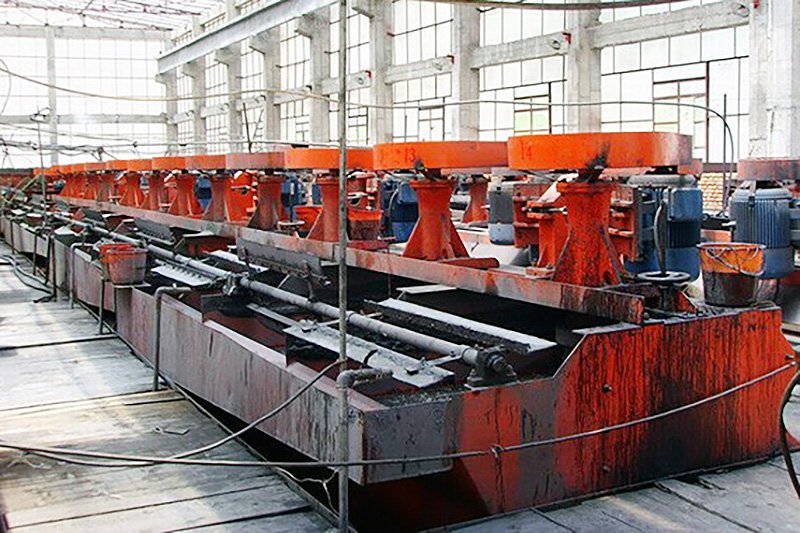

BF flotation machine
Motor: 1.5-45KW
Capacity:0.2-24t/h
Materials:Gold mine, silver mine, iron ore, molybdenum ore, lead-zinc mine, coal, fluorite, talc, quartz,estone, etc.
- Preponderance：It has the characteristics of large suction volume, low impeller peripheral speed, large impeller and cover plate clearance, and light wear, and can be used the selection and processing of metal ores (gold ore, silver ore, molybdenum ore, etc.) and non-me
Contact us：+8619303970888
Introduction of PC HAMMER crusher
BF series flotation machines are a type of mechanical agitation flotation equipment, an upgraded version of the SF type flotation machine, mainly for the selection of minerals with large specific gravity such as iron ore. The main features of the BF type flotation machine are that it maintains the advantages of the "A" type flotation machine, such as self-suction of air and pulp, without the need for step configuration, and the return of intermediate ore does not require a foam pump It has the characteristics of large air suction, low peripheral speed of the impeller, large clearance between the impeller and the cover plate, and light wear, and can be for the selection and processing of metal ores (gold ore, silver ore, molybdenum ore, etc.) and non-metallic ores (fluorspar quartz, limestone, etc.). The use of this type of flotation machine can facilitate the process layout, especially suitable for small and medium-sized benefic plants with complex processes and multiple selection sections.
Performance Advantages
Good flotation effect and convenient adjustment
It is equipped with automatic liquid level control and electric control device, which is convenient to adjust and has a high degree of foam refinement, thus improving the effect of flation.
High sorting accuracy and low ash content of clean coal
High separation precision, high production rate, and more advantages for difficult-to-select coal, low ash content of clean coal, which can be reduced by 12% compared with conventional mechanical flotation machines.
Low investment and low operating cost
After upgrading and improvement, the equipment has a more reasonable structure, small footprint, low investment cost, and saves 1/3-1/2 energy compared with conventional mechanical agitation flotation machine, and has low operating costs.
Low-wear parts have strong durability and short replacement cycle.
The impeller is always in a dynamic state inside the machine, playing a role in clearing accumulated materials and debris, reducing the phenomenon of parts being damaged by debris enhancing the wear resistance, and shortening the replacement cycle.
Working principle of hammer crusher
The comminuted ore, mixed with water and the necessary reagents during or after grinding, is stirred in a conditioning tank to form a pulp, which then fed into a pulp tank that has begun to stir. Air is introduced into the pulp, causing it to form a large number of bubbles. Some mineral particles that are not easilyted by water, i.e., generally known as hydrophobic, adhere to the bubbles and float to the surface of the pulp with the bubbles, forming a mineralizedth layer. Other mineral particles that are easily wetted by water, i.e., generally known as hydrophilic, do not adhere to the bubbles and remain in the. The mineralized froth containing specific minerals is discharged, thus achieving the purpose of ore dressing.
Technical parameter
| Model | Volume | Internal dimensions(L×W×H)(m) | Air intake(m³/min) | Power(kw) | Motor model | Capacity(t/h) | Weight per slot(t) |
| BF-0.37 | 0.37 | 0.74×0.74×0.75 | 0.9~1.05 | 1.5 | Y90L-4 | 0.2~0.4 | 0.5 |
| BF-0.65 | 0.65 | 0.85×0.95×0.9 | 0.9~1.10 | 3 | Y132S-6 | 0.3~0.7 | 1 |
| BF-1.2 | 1.2 | 1.05×1.15×1.10 | 1.0~1.10 | 5.5 4.0 | Y132M2-6 Y132M1-6 | 0.6~1.2 | 1.4 |
| BF-2.0 | 2 | 1.40×1.45×1.12 | 1.0~1.10 | 7.5 | Y160M-6 | 1.0~2.0 | 1.8 |
| BF-2.8 | 2.8 | 1.65×1.65×1.15 | 0.9~1.10 | 11 | Y180L-8 | 1.4~3.0 | 2.2 |
| BF-4.0 | 4 | 1.9×2.0×1.2 | 0.9~1.10 | 15 | Y200L-8 | 2~4 | 2.6 |
| BF-6.0 | 6 | 2.2×2.35×1.3 | 0.9~1.10 | 18.5 | Y225S-8 | 3~6 | 3.3 |
| BF-8.0 | 8 | 2.25×2.85×1.4 | 0.9~1.10 | 22 30 | Y225M-8 Y250M-8 | 4~8 | 4.2 |
| BF-10 | 10 | 2.25×2.85×1.7 | 0.9~1.10 | 22 30 | Y225M-8 Y250M-8 | 5~10 | 4.7 |
| BF-16 | 16 | 2.85×3.8×1.7 | 0.9~1.10 | 37 45 | Y280S-8 Y280M-8 | 8~16 | 8.4 |
| BF-20 | 20 | 2.85×3.8×2.0 | 0.9~1.10 | 37 45 | Y280S-8 Y280M-8 | 10~20 | 8.7 |
| BF-24 | 24 | 3.15×4.15×2.0 | 0.9~1.10 | 45 | Y280M-8 | 12~24 | 9.2 |
