VSI5X Vertical Shaft Impact Crusher

Overview of VSI5X Vertical Shaft Impact Crusher

VSI5X Series Impact Crusher adopts Germanic advanced technique and obtains many proprietary interllectual property rights and the patent technology as well as integrate with three types of crushing who have been the core equipments in sand making industry. The VSI5X Series impact crusher is widely used in metal and nonmetal mine, concrete, fireproof material, abrasive filler, frit, construction aggregate, sand, metallurgy, etc. VSI5X series crushers can be applied to medium-fine crush all of the ore and rock such as iron ore, nonferrous metal, emery, bauxite, granite and so on.

VSI5X Vertical Shaft Impact Crusher is popular in the market. This machine can satisfy customers’ requirements about efficiency and capacity, because its service life is increased by 48%, the costs are reduced by 30%, and the throughput of materials is improved by 30%.

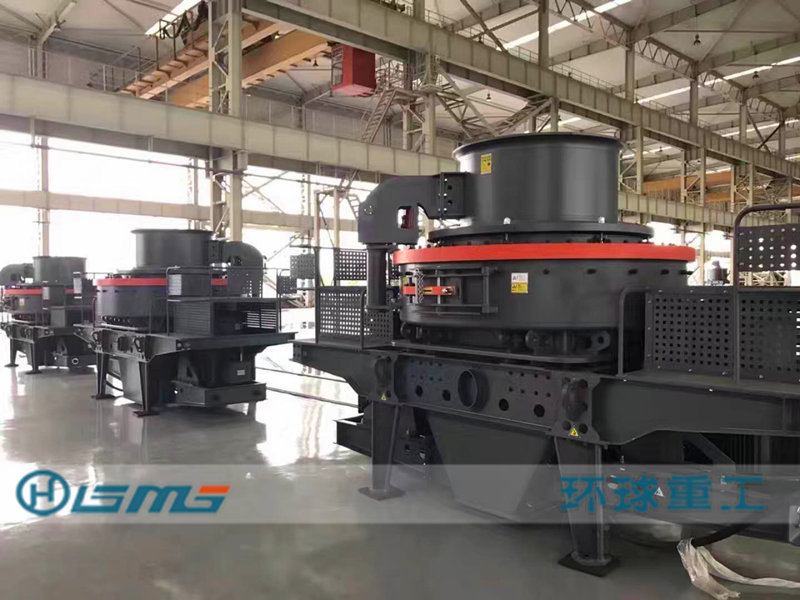

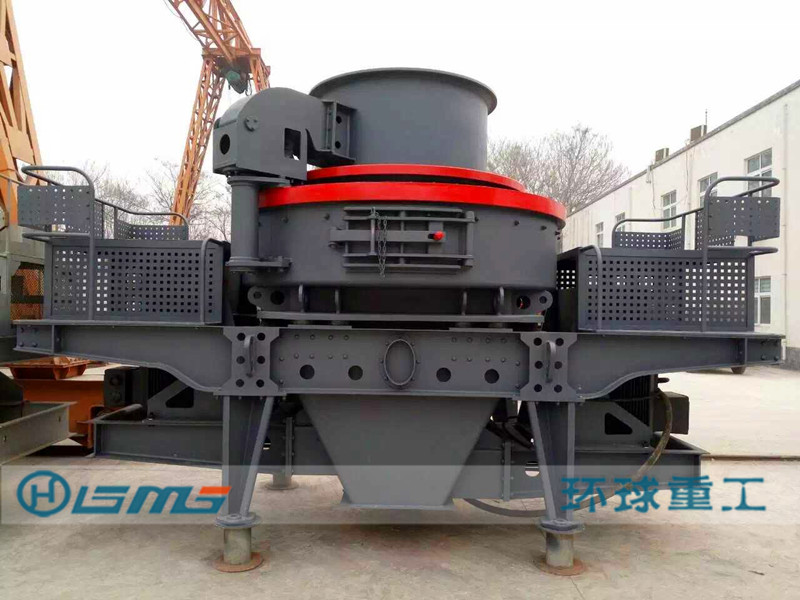

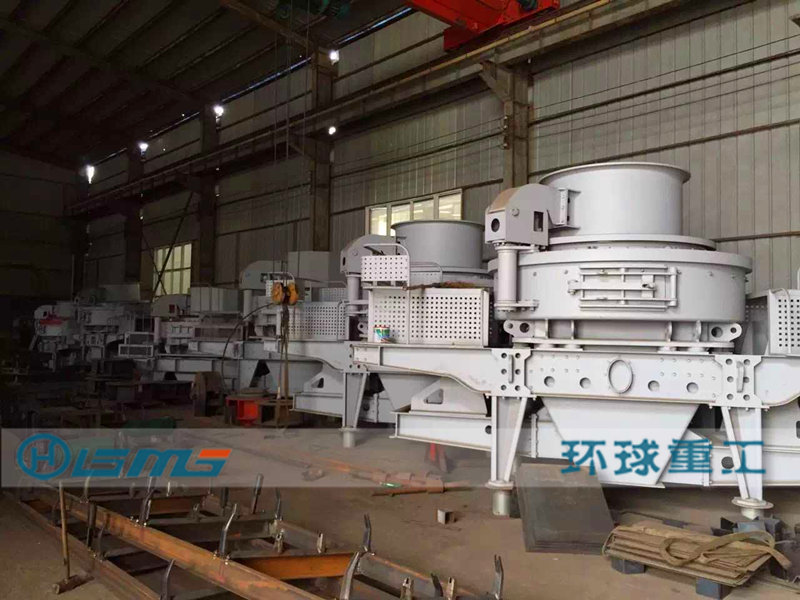

Pictures of VSI5X Vertical Shaft Impact Crusher

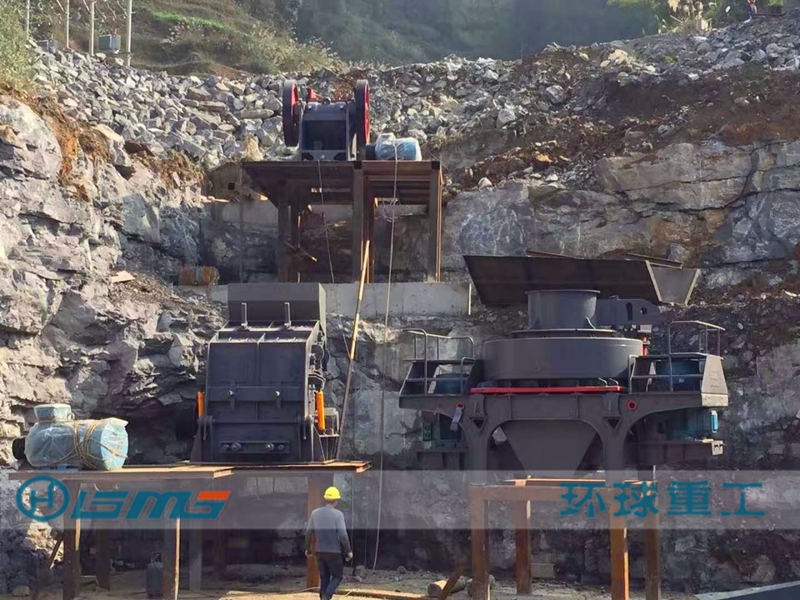

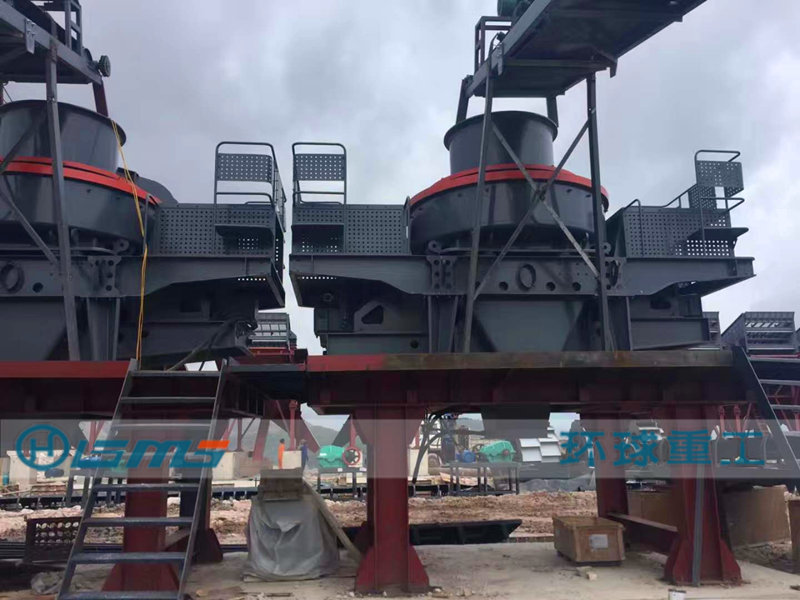

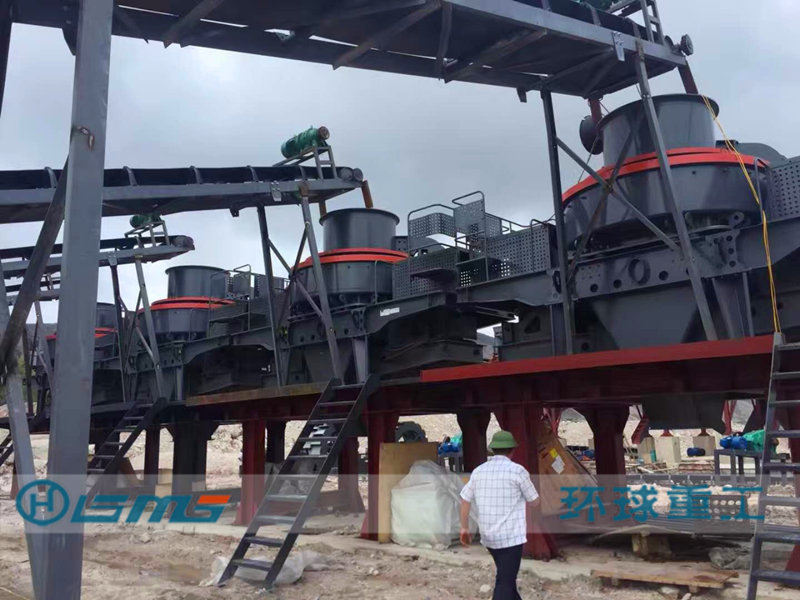

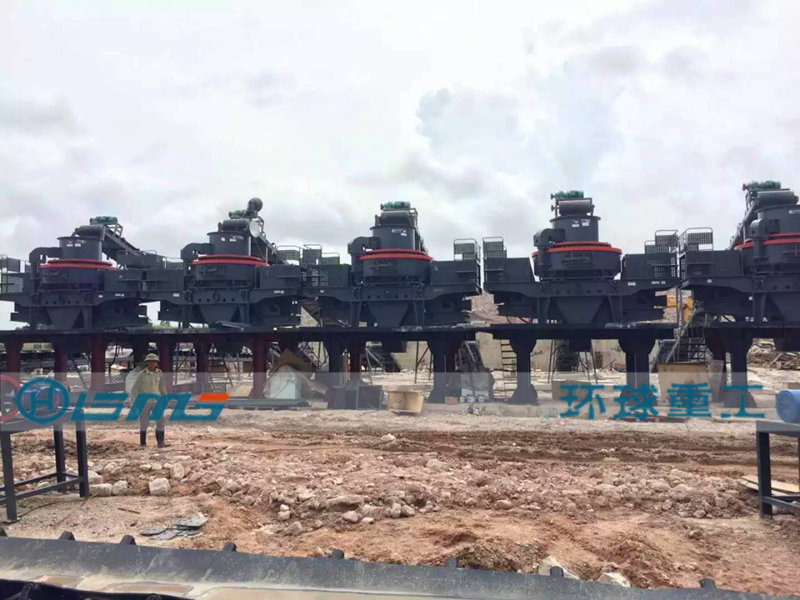

Project cases of VSI5X Vertical Shaft Impact Crusher

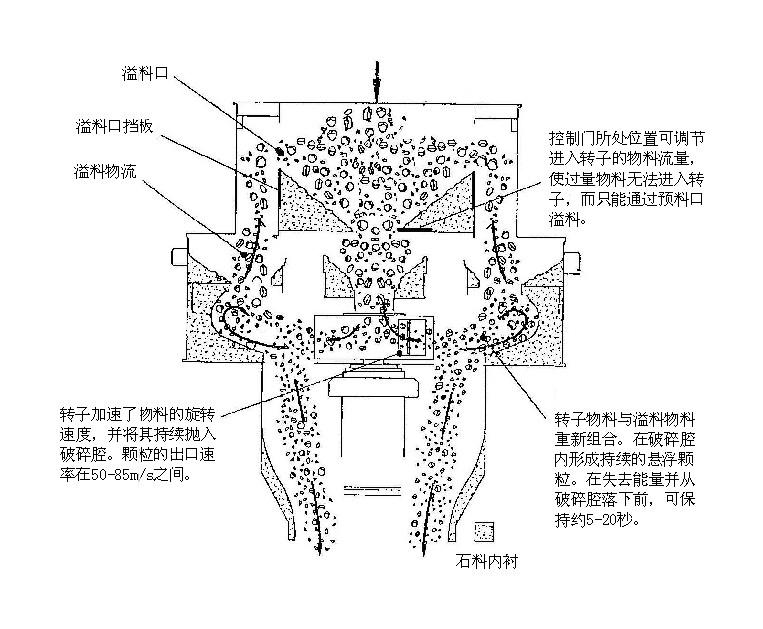

Working Principle of VSI5X Vertical Shaft Impact Crusher

Materials fall into the hopper and then through the central well enter the high speed rotator which will throw out the materials with high speed. Firstly, the materials strike with the materials that are free falling down. Secondly, materials strike the materials-liner in the vortex or the impact liner and are rebounded to the top of crushing cavity and then deflecting fall down. Thirdly, the falling materials with the shoot materials form a continuous materials curtain. Lastly, crushed materials be discharged from the under discharging opening.

Features of VSI5X Vertical Shaft Impact Crusher

VSI5X series of Vertical shaft Impact Crusher introduces German technology. VSI5X is the key equipment in sand making area with many patents. VSI5X is a kind of totally new high efficient crusher. It has the following features:

1. Rotor with deep chamber increases 30% capacity after perfect design.
2. Side plate direction can be changed to increase material utility ratio, operating ratio can be increased 48%.
3. Worn hammer with combined type is only changed to reduce operating cost 30%. Another pair of vice hammer is added to prevent from damaging main hammer and side plate.
4. The most key wear resistant material uses wear resistant and high temperature resistant material in American important area.
5. Rhombus shape impact plate is used to prevent side plate from being damaged.
6. Bearing is famous international brand imported from Japan, Sweden, America, etc.
7. Perfect discharge and smooth curve reduce resisting force when material flows, so capacity is increased greatly.
8. Spread dish with double purposes can make two feeding ways change easily.
9. Special seal structure under main shaft guarantee no oil leak without seal.
10. Japanese hydraulic opening cover device is originally imported. The cover is moved easily and inspection of inner part is easy.
11. Motor with high grade of protection is selected. The motor has features of high efficiency, low noise, etc. The motor complies with IEC, insulation grade F, protection grade IP54/55.

Prices of VSI5X Vertical Shaft Impact Crusher

Global Heavy Industry provides customers with production line design process and helps to design a satisfactory and reasonable production line. We also provide related technical personnel training and enable them to acquire a certain amount of technical knowledge and machine maintenance tips.

Technical Data of VSI5X Vertical Shaft Impact Crusher



Models and specifications of the equipment, according to the actual needs of customers, or special requirements of customers, can be custom designed.
