PCL Vertical Shaft Impact Crusher

Overview of PCL Vertical Shaft Impact Crusher

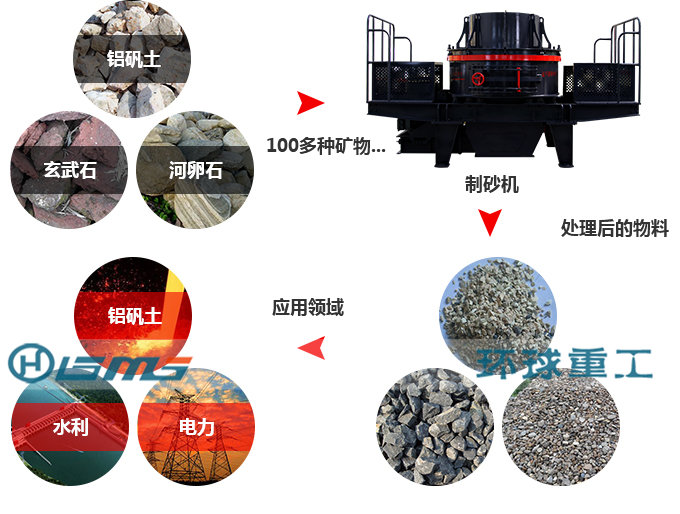

PCL Sand Making Machine (namely PCL vertical shaft impact crusher) is of high-power and low-consumption, which is designed depending on several years’ hard work and study of mechanical mining equipment. Sand Making Machine absorbs advanced technology of the same products of Barmac Company of America, now it is of the international level. Sand Making Machine plays an important role in crushing minerals into pieces. PCL vertical shaft impact crusher is widely used in all kinds of minerals, cement, refractory material, carborundum grain, glass raw material, construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, such materials are with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.

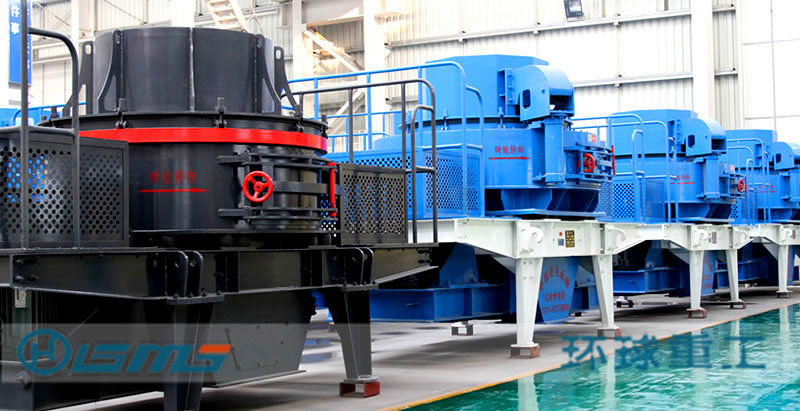

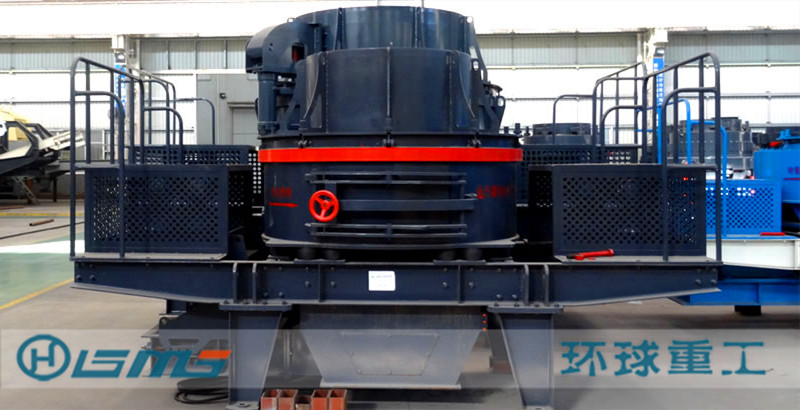

Pictures of PCL Vertical Shaft Impact Crusher

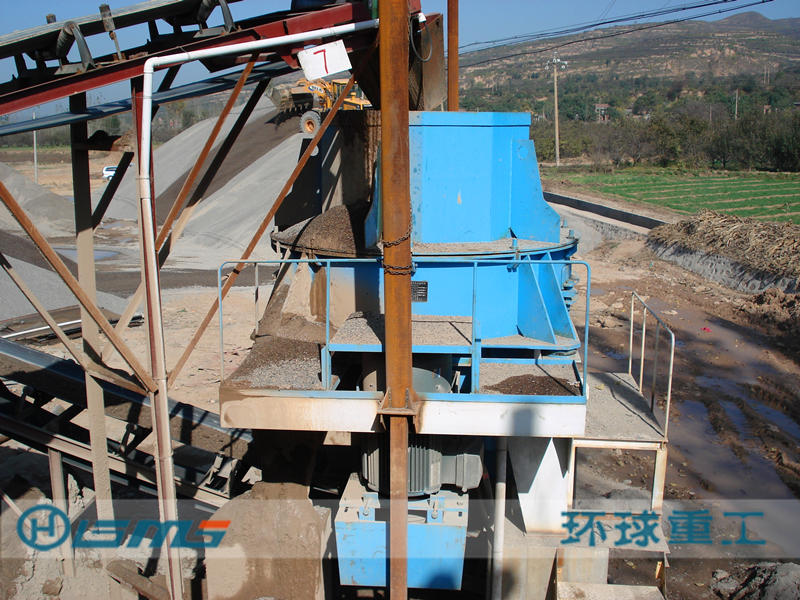

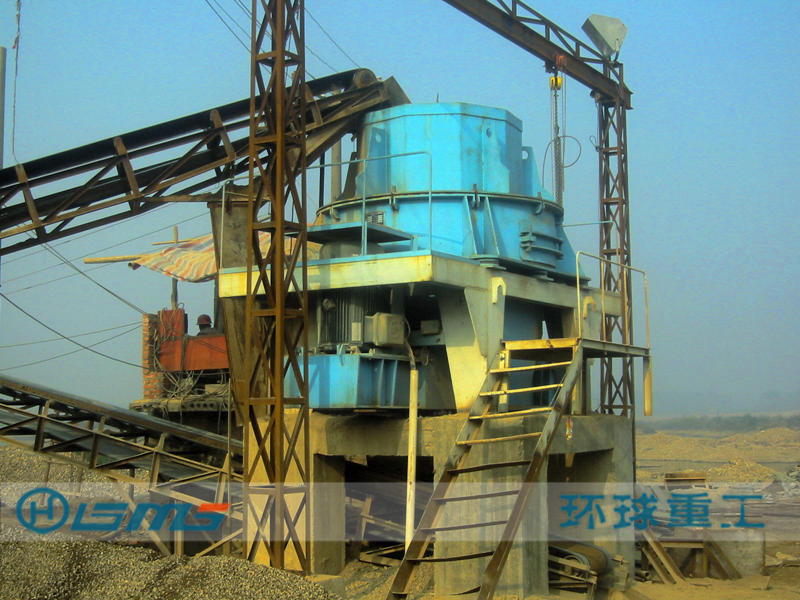

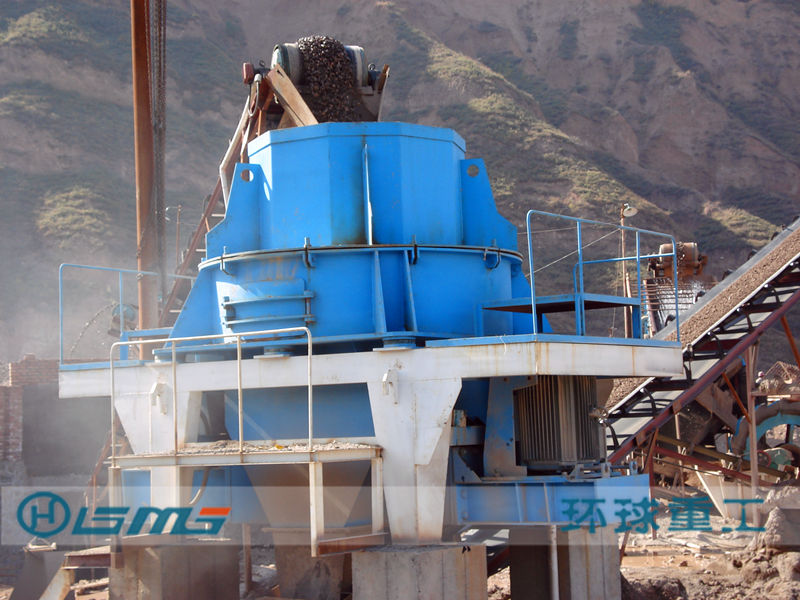

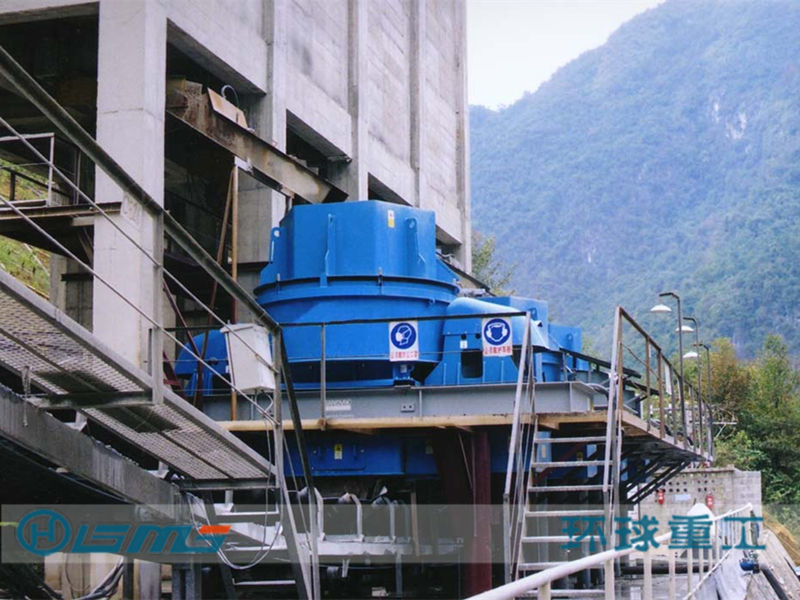

Project cases of PCL Vertical Shaft Impact Crusher

Working Principle of PCL Vertical Shaft Impact Crusher

The Whole PCL certical impact crusher including feed hopper, classifier, whirl pool cacity, impeller, main bearing assembly base, transmission device and motor etc. Operating pinciple is as follows: the materials enter the crusher through feeder hopper, which is divided into two parts, one part through the middle of classifier entering into the rotating impeller at high speed, then accelerated, whose speed can reach hundreds of acceleration, then is shot through the tunnels around the impeller by the speed of 60-75 meter/second. First the materials will impact with some materials fallen around classifier, then impact on the whirlpool cavity’s scaleboard together, then will be rebounded and impact on the top of the whirlpool cavity, then changs its direction and goes down, forms continual material layers with the materials shot from the impeller. Therefore some materials will be impacted, crusher, milled twice or more times in the whirlpool cavity, then crushed matetials will be excluded through the bottom discharginghole. This can from a closed circulation through the circular classifier system; in general, materials can be crushed into 20 mesh through thrice circulation. Airflow self-circulation in the whirlpool cavity can eliminate the dust pollution well.

Features of PCL Vertical Shaft Impact Crusher

1. Simple structure and low operating cost;
2. High crushing ratio with low consumption;
3. Function of fine crushing and crude grinding;
4. Slightly influenced by moisture content of material, and the max moisture content is about 8%;
5. More suitable for crushing mid-hardness and hardness materials;
6. Cubic shape of final products, high density of piling up and low iron pollution;
7. More wearable and easier maintenance;
8. Low working noise (lower than 75 decibel) and light dust pollution.

Prices of PCL Vertical Shaft Impact Crusher

Global Heavy Industry provides customers with production line design process and helps to design a satisfactory and reasonable production line. We also provide related technical personnel training and enable them to acquire a certain amount of technical knowledge and machine maintenance tips.

Technical Data of PCL Vertical Shaft Impact Crusher



Models and specifications of the equipment, according to the actual needs of customers, or special requirements of customers, can be custom designed.
