Applications:quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on.
Materials:Sand washer is used to remove the dust in sand.
Feed size:800mm
Capacity:20-220t/h
The efficient sand washing machine of XSD series is a kind of cleaning equipment of international advanced level for sand and slag pellets, developed on the basis of introducing foreign outstanding technology of the same kind of products.Equipped with VSI impact crusher in sand making. Adopting advanced technology and taking practical condition of crushing industry into consideration .
Sand washer is used to remove the dust in sand. It aims at improving the quality of sand. The materials include the required gravel in building-site, gravel factories, hydropower station and concrete dam site, post and electric pole factory, casting-70 sand, glass factory’s quartz sand and refilling pressure sand.
It is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on.

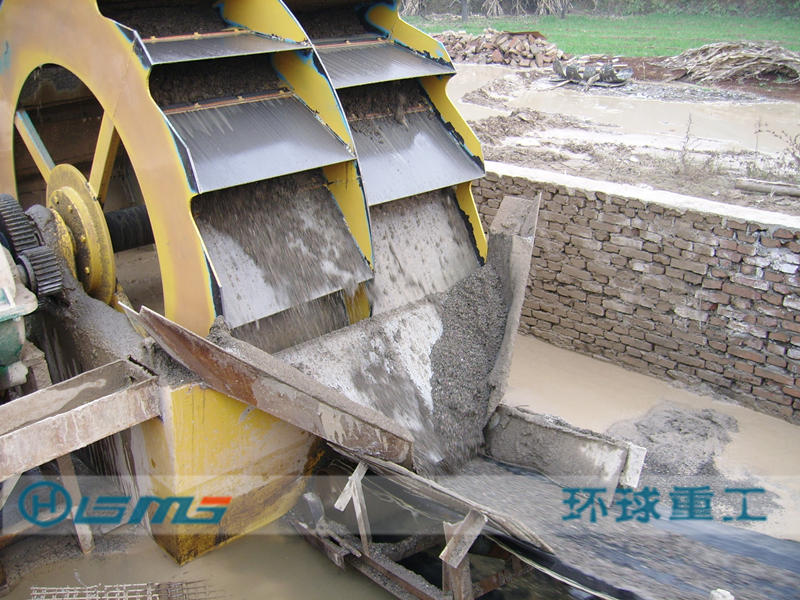

Sand washing machinery drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.
1. It is of simple structure. The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.
2. When it is used for cleaning sand in quarries, it has many advantages compared with the traditional spiral one.
3.There is little loss for medium-sized and fine sand and stone powder. The grade and the fineness of the sand for construction after being washed can be up to the national standards, such as “sand for construction” and “cobble and broken stones for construction”.
4. There are no other wearing parts except the screen mesh.
5.It features long service life and few times for maintenance.
1. Simple structure
2. Water saving
3. No pollution
4. Easy to maintain
5. Durability
Global Heavy Industry provides customers with production line design process and helps to design a satisfactory and reasonable production line. We also provide related technical personnel training and enable them to acquire a certain amount of technical knowledge and machine maintenance tips.
| Model | Size of impeller (mm) | Speed （r/min） | Capacity （t/h） | Power （kw） | Overall dimension （mm） |
| DXS2.8 | Φ2800×880 | 1.235 | 20-50 | 7.5 | 3875×2550×2910 |
| DXS3.2A | Φ3200×880 | 1.217 | 100-150 | 11 | 4547×3069×3400 |
| DXS3.6 | Φ3600×1200 | 1.09 | 130-190 | 15 | 4982×4146×3800 |
| DXS3.8 | Φ3800×1600 | 1.07 | 150-220 | 22 | 4978×5440×3798 |
Models and specifications of the equipment, according to the actual needs of customers, or special requirements of customers, can be custom designed.
