Applications:Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc.
Materials:limestone, dolomite, cement clinker, iron ore, molybdenum ore, aluminum ore, pebbles, rock.
Feed size:900mm以下
Capacity:55-800t/h

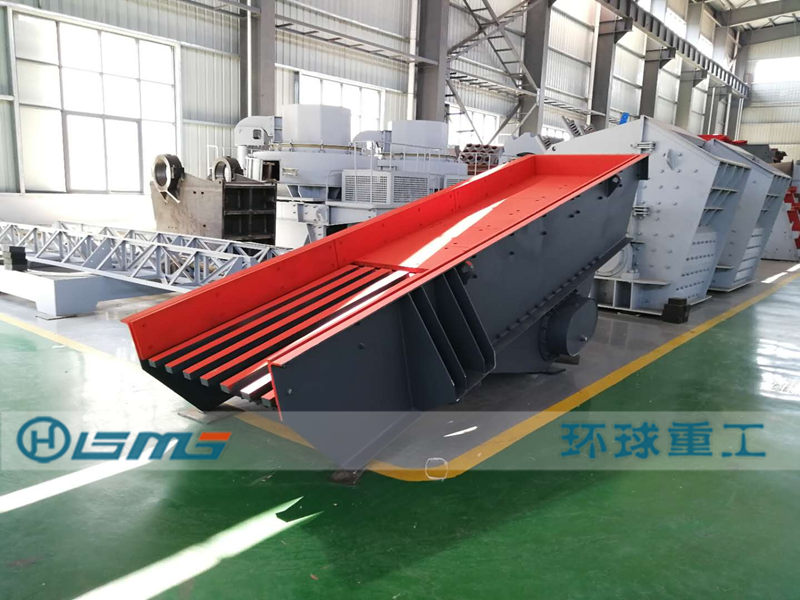

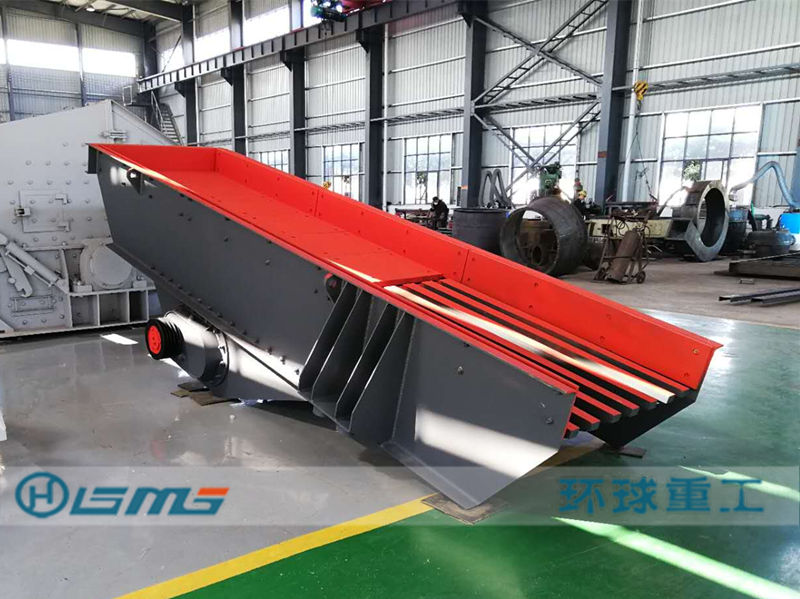

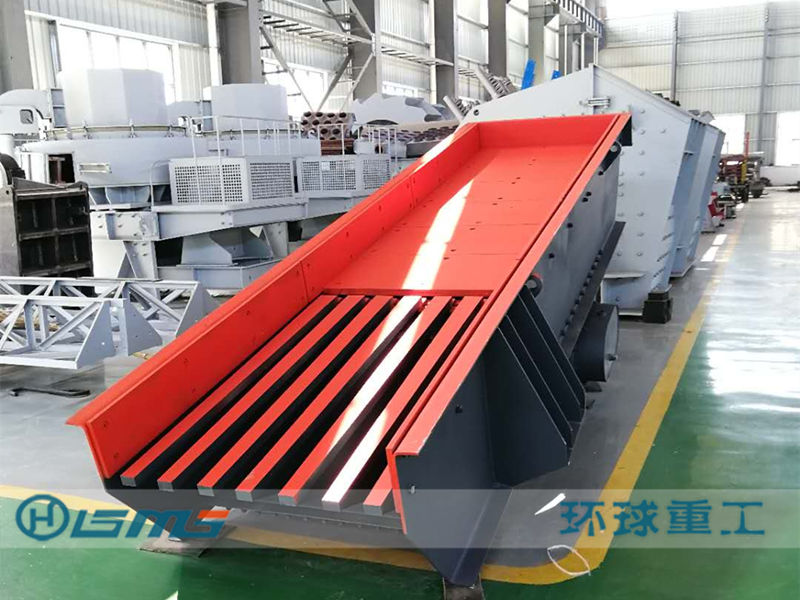

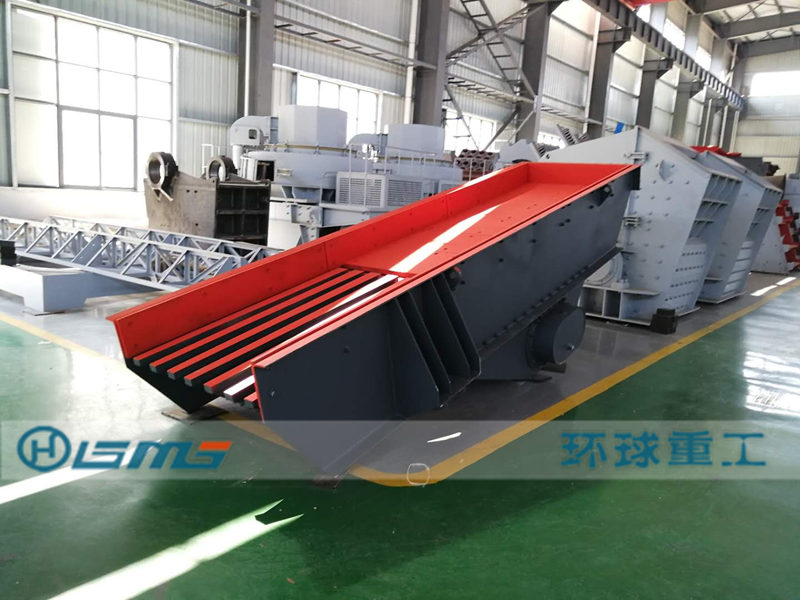

Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.

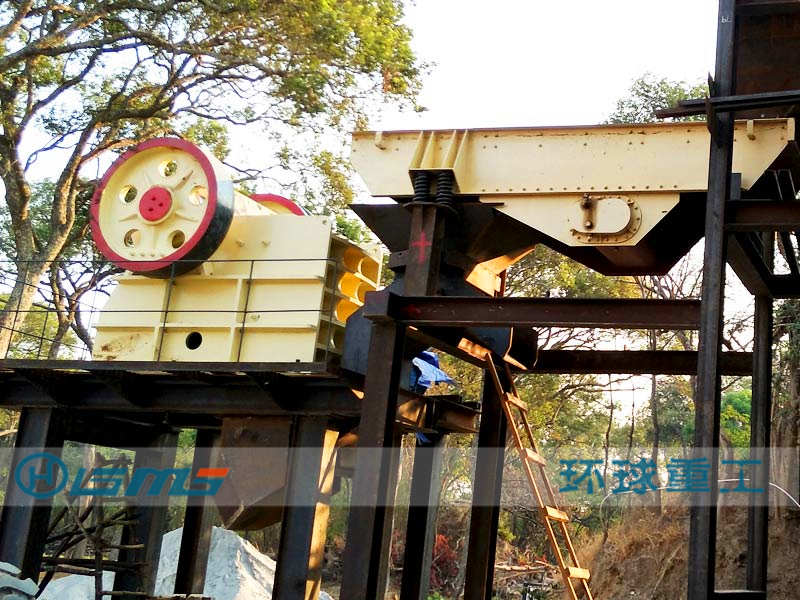

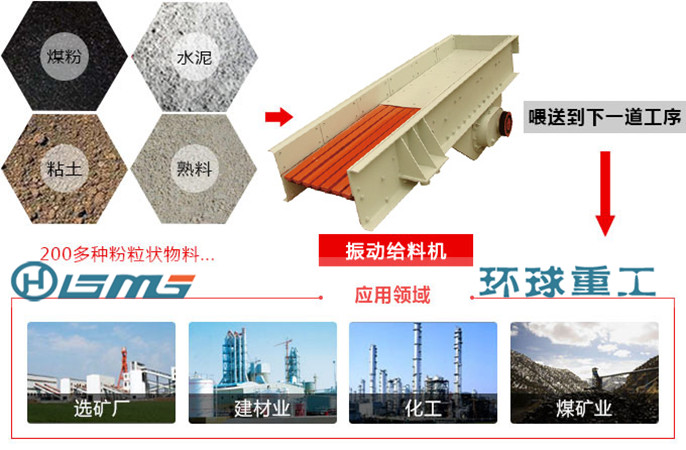

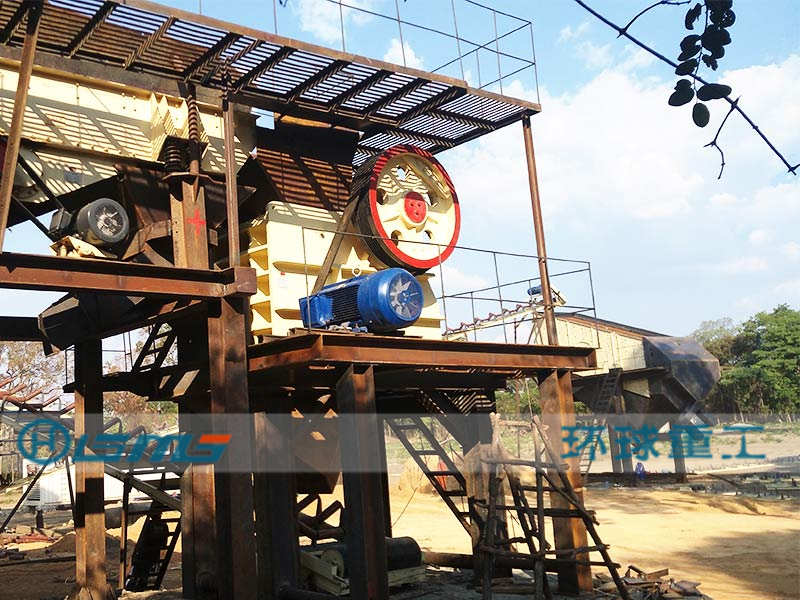

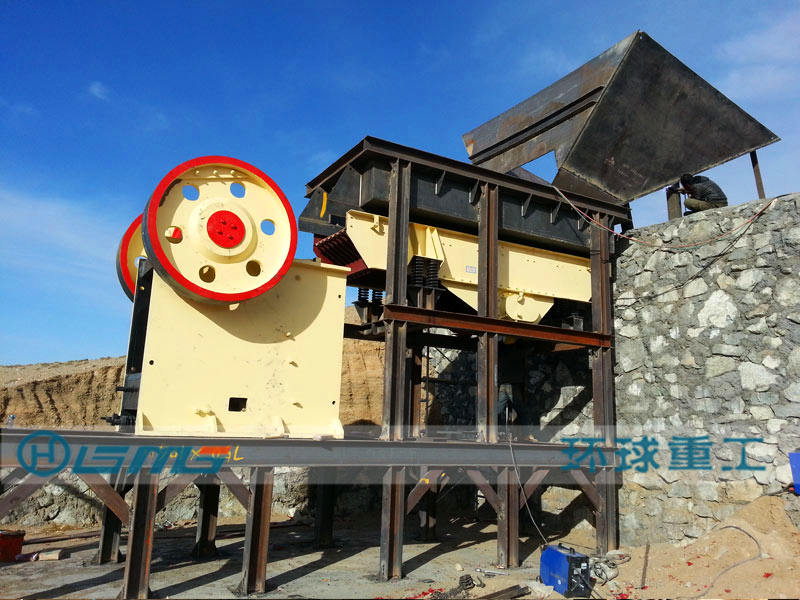

In the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. It can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.
Vibrating feeder is designed based on the vibration principle. It creates vibration when the materials are passed into the funnel and screen. Vibrating feeder is made up of vibrating frame, vibrator, spring, motor and motor vibrating accessory. The vibrator contains two fixed eccentric shafts with jogged gears. And they create a high aptitude to vibrate the equipment.
It vibrates calmly, works reliably with a long life-span; its stimulating vibrancy power can be adjusted, while the flux can be changed and controlled, it is convenient and stable to adjust; Vibrating feeder's vibrating electrical engine is stimulating vibrancy fountain, with low noise, low cost of electricity, and good adjusting capability, without rushing phenomenon. Its structure is simple and works stably, and easy to adjust and install, and it is convenient to maintain and take care for its light weight and small size, and it can avoid powder and dust pollution when using the closed structural body.
Characters: Smooth vibration, reliable operation, long service life, low noise, low power consumption, easy to adjust, simple structure, easy to install, light weight, small volume, simple maintenance.
Global Heavy Industry provides customers with production line design process and helps to design a satisfactory and reasonable production line. We also provide related technical personnel training and enable them to acquire a certain amount of technical knowledge and machine maintenance tips.
| Model | Max. Feeding Size (mm) |
Processing Capacity (t/h) |
Motor Power (kw) |
Obliquity of material trough (°) |
Trough size (mm) |
Dimensions (L×W×H)(mm) |
| GZD-650×2300 | 300 | 80-100 | 1.1×2 | 10-20 | 650×2300 | 2300×1360×780 |
| GZD-750×2500 | 350 | 100-130 | 1.5×2 | 10-20 | 750×2500 | 2500×1460×780 |
| GZD-850×3000 | 400 | 120-150 | 3×2 | 10-20 | 850×3000 | 3110×1800×1600 |
| GZD-1000×3600 | 500 | 150-200 | 3.7×2 | 10-20 | 1000×3600 | 3850×1950×1630 |
| GZD-1100×3600 | 580 | 240-300 | 3.7×2 | 10-20 | 1100×3600 | 3600×2050×1660 |
| GZD-1300×3600 | 650 | 450-600 | 7.5×2 | 10-20 | 1300×3600 | 3900×2350×1750 |
| GZD-1500×3600 | 1050 | 450-1000 | 10×2 | 10-20 | 1500×3600 | 3900×2000×1750 |
| GZD-2000×3600 | 1200 | 550-1000 | 22×2 | 10-20 | 2000×3600 | 3600×2000×1750 |
| GZD-2500×5000 | 1500 | 650-1500 | 11 | 10-20 | 2500×5000 | 5000×2500×1800 |
| ZSW-380×95 | 500 | 100-180 | 11 | 0-10 | 3800×960 | 3800×1640×1320 |
| ZSW-490×110 | 630 | 150-400 | 15 | 0-10 | 4900×1100 | 4980×1830×1320 |
| ZSW-490×130 | 750 | 400-700 | 22 | 0-10 | 4900×1300 | 4980×2580×2083 |
| ZSW-600×130 | 750 | 400-700 | 22 | 0-10 | 6000×1300 | 6082×2580×2083 |
| ZSW-600×150 | 800 | 500-900 | 30 | 0-10 | 6000×1500 | 6086×2662×1912 |
| ZSW-600×180 | 800 | 700-1500 | 37 | 0-10 | 6000×1800 | 6310×3262×2230 |
Models and specifications of the equipment, according to the actual needs of customers, or special requirements of customers, can be custom designed.
