Applications:metallurgy, mining, chemical engineering, coal, refractory matter and ceramic production.
Materials:all kinds of minerals and other materials.
Feed size:≤25-≤50mm
Capacity:0.62-180t/h

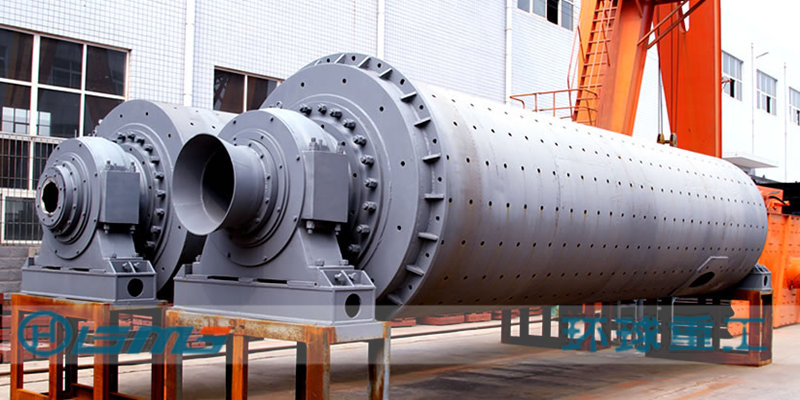

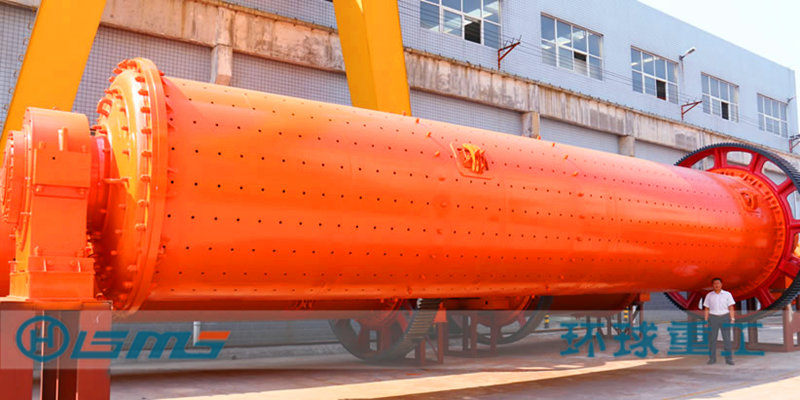

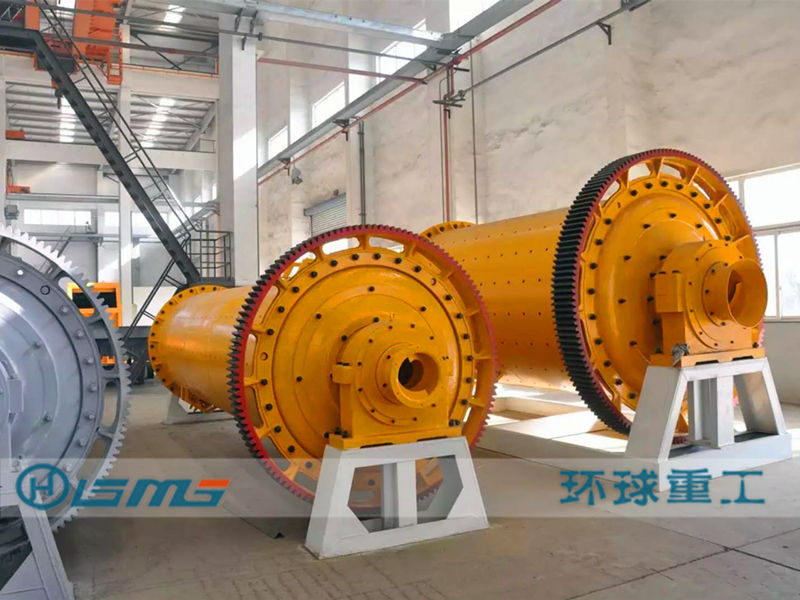

Rod mill is also called rod grinding rod mill, bar mill and rod grinding mill. Our rod grinder is especially suitable for crushing river gravel to make sand. It's a kind of effective and energy saving rod grinding machine. Moreover, according to different materials and discharging methods, there are dry rod mills and wet type rod mills for choice. We can make the rod mill according to the different commendation of the customers, whose satisfaction can be our great honor in the process of production. Today let us have the honor to introduce the basic information to the people looking for it.
The electro motor drives the cylinder to rotate through the reduction gears and the peripheral rack wheel reducer transmission, or the low speed synchronous motor directly drives the cylinder to rotate through the peripheral rack wheel reducer transmission. Inside the cylinder, there are proper ore grinding media-steel rod. Under the eccentric force and frictional force, the ore grinding media are lifted to a certain height and fall down in the state of dropping. The materials to be ground continuously go into the cylinder from the ore feeding mouth and are crushed by the moving grinding media, and then are discharged by the overflow and the force of continuous feeding to go to the next procedure.
The features of rod mill are that in the ore grinding process, the grinding media contact with the ore in a linear manner, so that it has selective grinding function. The granularity of the final products is even, and the amount of the particles that are over crushed and ground is low. When used for coarse grinding, the processing amount of rod mill is higher than that of the ball mill with the same specification.

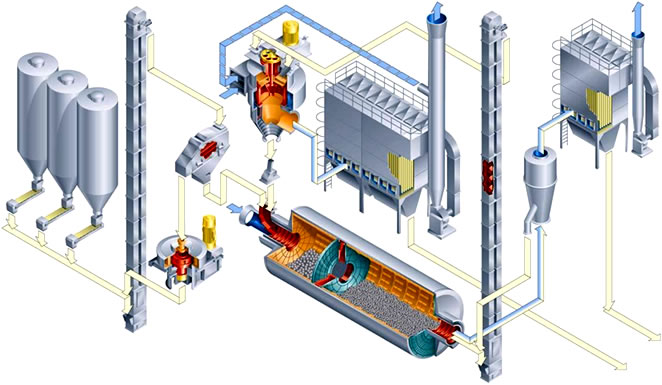

Global Heavy Industry provides customers with production line design process and helps to design a satisfactory and reasonable production line. We also provide related technical personnel training and enable them to acquire a certain amount of technical knowledge and machine maintenance tips.
| Model |
Shell Specifications （mm） |
Shell rotation speed （r/min） |
Feeding size (mm) |
Discharging size (mm) |
Processing capacity (t/h) |
Power (kw) |
Total weight (t) |
|
| Diameter | Length | |||||||
| MBS0918 | 900 | 1800 | 36-38 | ≤25 | 0.833-0.147 | 0.62-3.2 | 18.5 | 5.9 |
| MBS0924 | 900 | 2400 | 36 | ≤25 | 0.833-0.147 | 0.81-4.3 | 22 | 6.7 |
| MBS1224 | 1200 | 2400 | 36 | ≤25 | 0.833-0.147 | 1.1-4.9 | 30 | 13.9 |
| MBS1530 | 1500 | 3000 | 29.7 | ≤25 | 0.833-0.147 | 2.4-7.5 | 75 | 19.8 |
| MBS1830 | 1830 | 3000 | 25.4 | ≤25 | 0.833-0.147 | 4.8-11.6 | 130 | 34.9 |
| MBS2130 | 2100 | 3000 | 23.7 | ≤25 | 0.833-0.147 | 14-35 | 155 | 46.5 |
| MBS2136 | 2100 | 3600 | 23.7 | ≤25 | 0.833-0.147 | 19-43 | 180 | 48.7 |
| MBS2430 | 2400 | 3000 | 21 | ≤50 | 0.833-0.147 | 25-65 | 245 | 59.7 |
| MBS2736 | 2700 | 3600 | 20.7 | ≤50 | 0.833-0.147 | 32-86 | 380 | 92.5 |
| MBS2740 | 2700 | 4000 | 20.7 | ≤50 | 0.833-0.147 | 32-92 | 400 | 95 |
| MBS3245 | 3200 | 4500 | 18 | ≤50 | 0.833-0.147 | 64-180 | 630 | 149 |
Models and specifications of the equipment, according to the actual needs of customers, or special requirements of customers, can be custom designed.
