Overview of Jaw Crusher

颚式破碎机

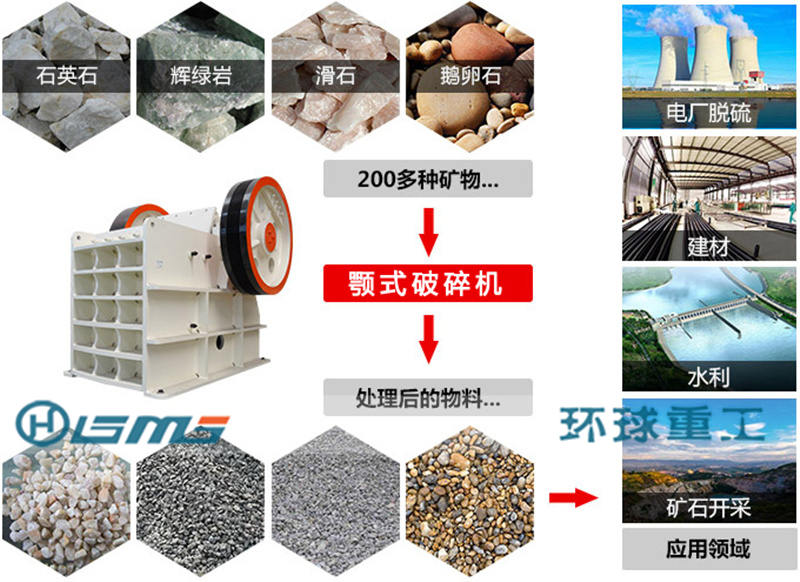

Jaw Crusher is a kind of crusher that most commonly used all over the world, with such advantages such as large crushing ratio, even product size, simple structure and convenient maintenance. It can be divided into coarse crusher and fine crusher. The compression strength of the materials to be crushed is not greater than 320MPA. Large-and-medium size jaw crusher is one of our competitive products and our company is the domestic leader especially in designing and manufacturing large-size jaw crusher.

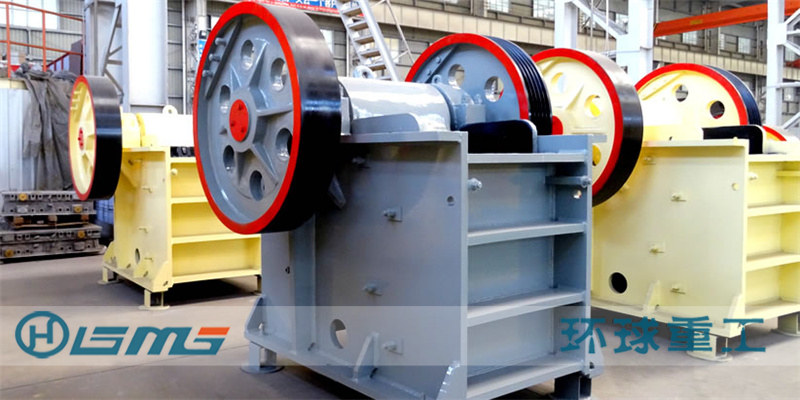

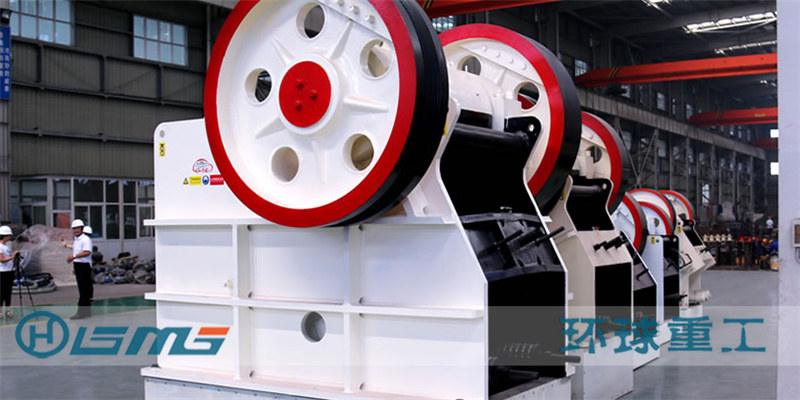

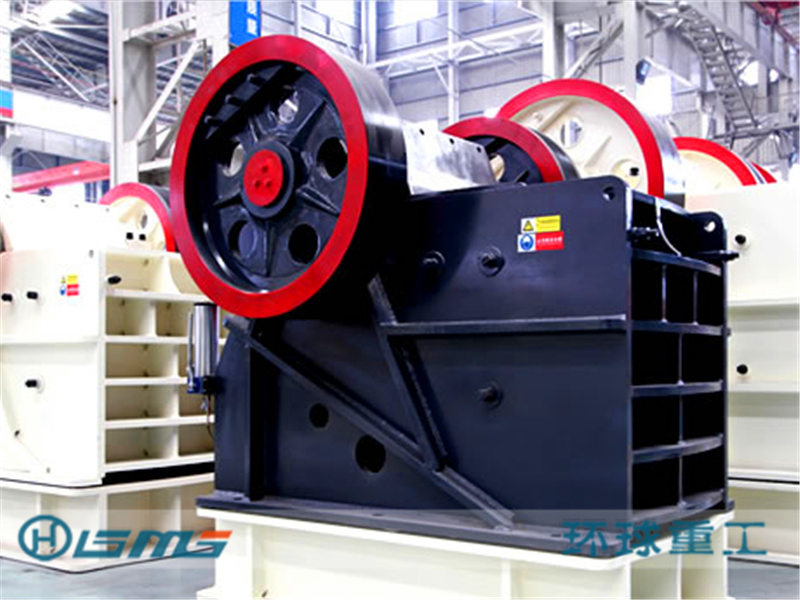

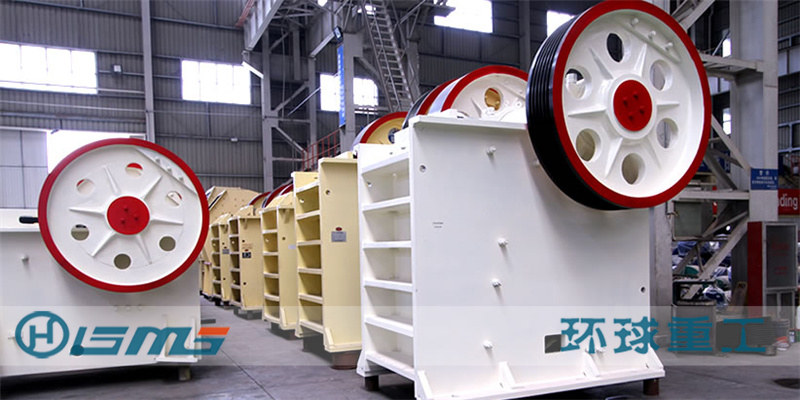

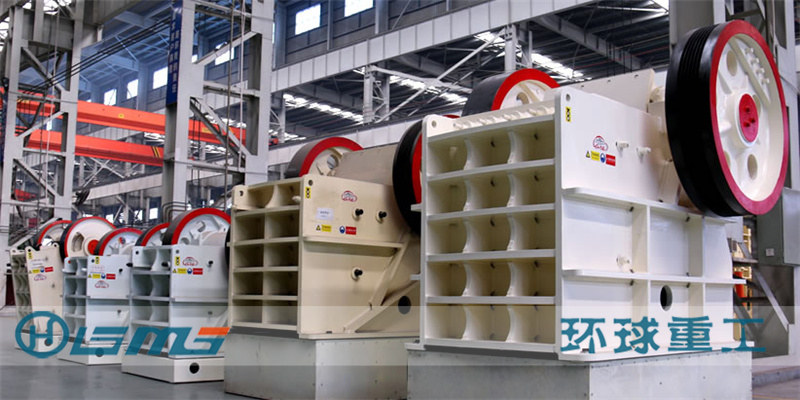

Pictures of Jaw Crusher

Jaw Crusher

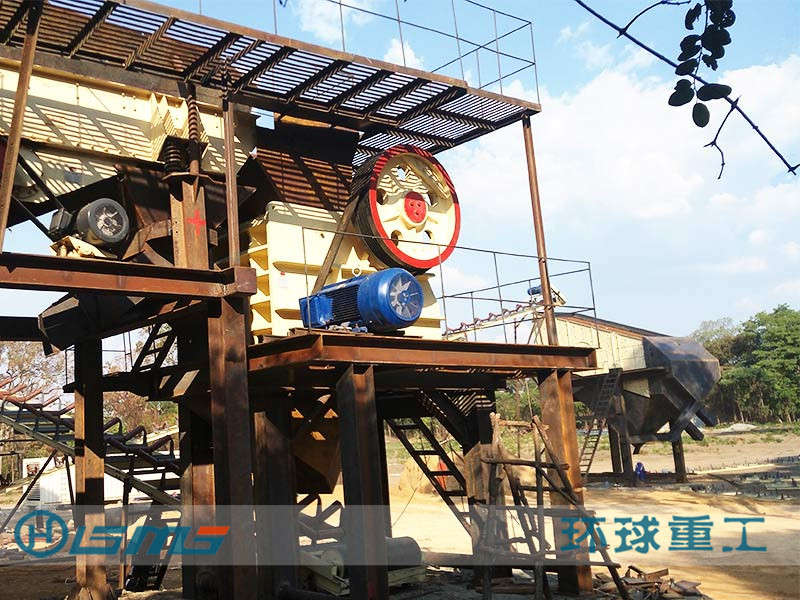

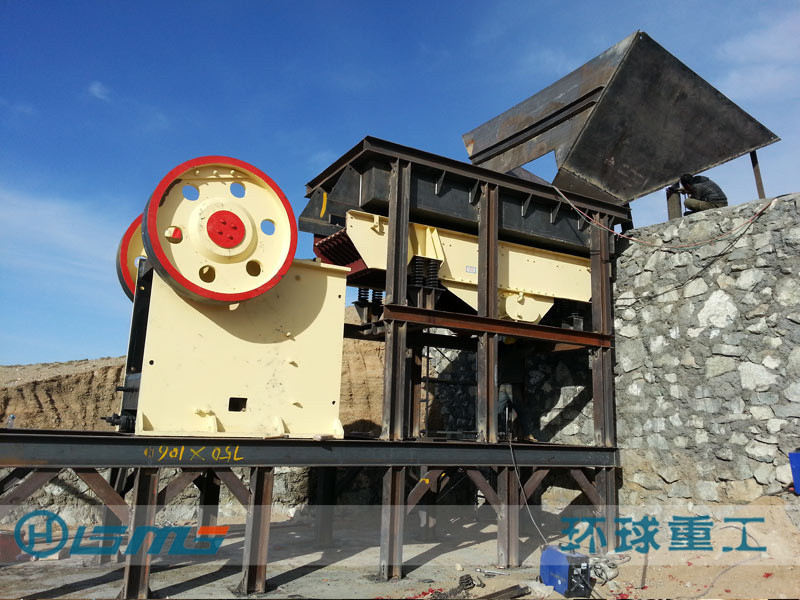

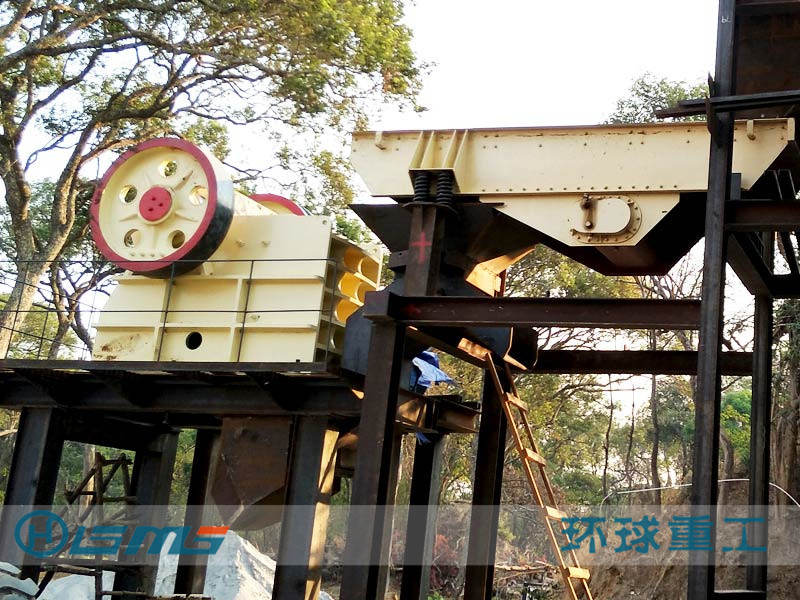

Project cases of Jaw Crusher

Jaw Crusher

Working Principle of Jaw Crusher

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

Features of Jaw Crusher

1) simple structure, easy maintenance
2) stable performance
3) Flexible capacity
4) Over loading protection
5) stable performance
6) stable performance
7) even final particles and high crushing ratio
8) High efficiency and low operation cost
9) Alternative ordinary and hydraulic types

Prices of Jaw Crusher

Global Heavy Industry provides customers with production line design process and helps to design a satisfactory and reasonable production line. We also provide related technical personnel training and enable them to acquire a certain amount of technical knowledge and machine maintenance tips.

Technical Data of Jaw Crusher

Model	Feed opening (mm）	Max.feeding size (mm)	Adjusting range of discharge opening (mm)	Processing capacity (t/h)	Rotation speed of eccentric shaft (r/min)	Motor power (kw)	Total weight (t)	Dimensions （L×W×H） (mm)
PE-150×250	150×250	125	10-40	1-3	250	4P 5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	4P 7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	4P 11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-20	300	6P 15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	6P 30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	6P 55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	6P 55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-160	250	6P 55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	8P 110	29	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	8P 110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	8P 110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	8P 110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	8P 110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-450	200	8P 110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	8P 110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	6P 160-220	100.9	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	8P 280-355	139	5160×3660×4248
PE-1600×2100	1600×2100	1500	300-400	1300-2200	160	8P 350-380	150.6	6210×4013×4716
PEX-150×750	150×750	120	18-48	8-25	320	4P 15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	6P 22	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	6P 30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	6P 37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	6P 55	15.6	2720×1950×1600
